Designed for upgraded fuel delivery systems, this electric fuel pump setup supports dependable fuel movement in universal fuel-system applications where dimensions and connection requirements are verified. The 85 GPH flow rating and 90 PSI pressure capability help provide the fuel supply needed when the pump is matched to the correct regulator, filter, wiring, and line size.

Electric Fuel Delivery
The external electric pump design is built for consistent fuel transfer and stable operation when properly mounted and wired. Its 85 GPH flow specification and 12 V electrical requirement should be matched to the vehicle fuel demand, relay setup, and fuel-system layout.

Pressure & Filtration Support
The pump supports up to 90 PSI and should be paired with the correct pre-filter and post-filter arrangement to help protect the fuel system and maintain clean fuel delivery.

Construction & Mounting
Durable construction supports long-term service and bracket support listed as No for secure placement when the pump is installed away from excessive heat and debris.

Installation & System Matching
Verify fuel type compatibility, pump location, wiring capacity, regulator selection, filter orientation, hose size, and fitting style before installation. Proper system matching helps support reliable fuel delivery and long-term pump operation.

COMPATIBLE WITH:
UNIVERSAL

Intended for gasoline EFI applications.
Requires the use of 100 micron pre-filter.

COMMON VEHICLE APPLICATIONS:
Universal fuel system applications where specifications match the vehicle setup
Custom fuel plumbing and upgraded fuel delivery layouts
Restoration, replacement, and performance-focused fuel system builds

NOTES:
Verify dimensions, fitting size, thread type, fuel type, and system requirements before installation.
Universal components may require additional adapters, fittings, or mounting hardware.
Confirm compatibility with the complete fuel system before use.

SPECIFICATIONS:
Body Color: Black
Body Material: Aluminum
Compatible Fuel Type: Gasoline

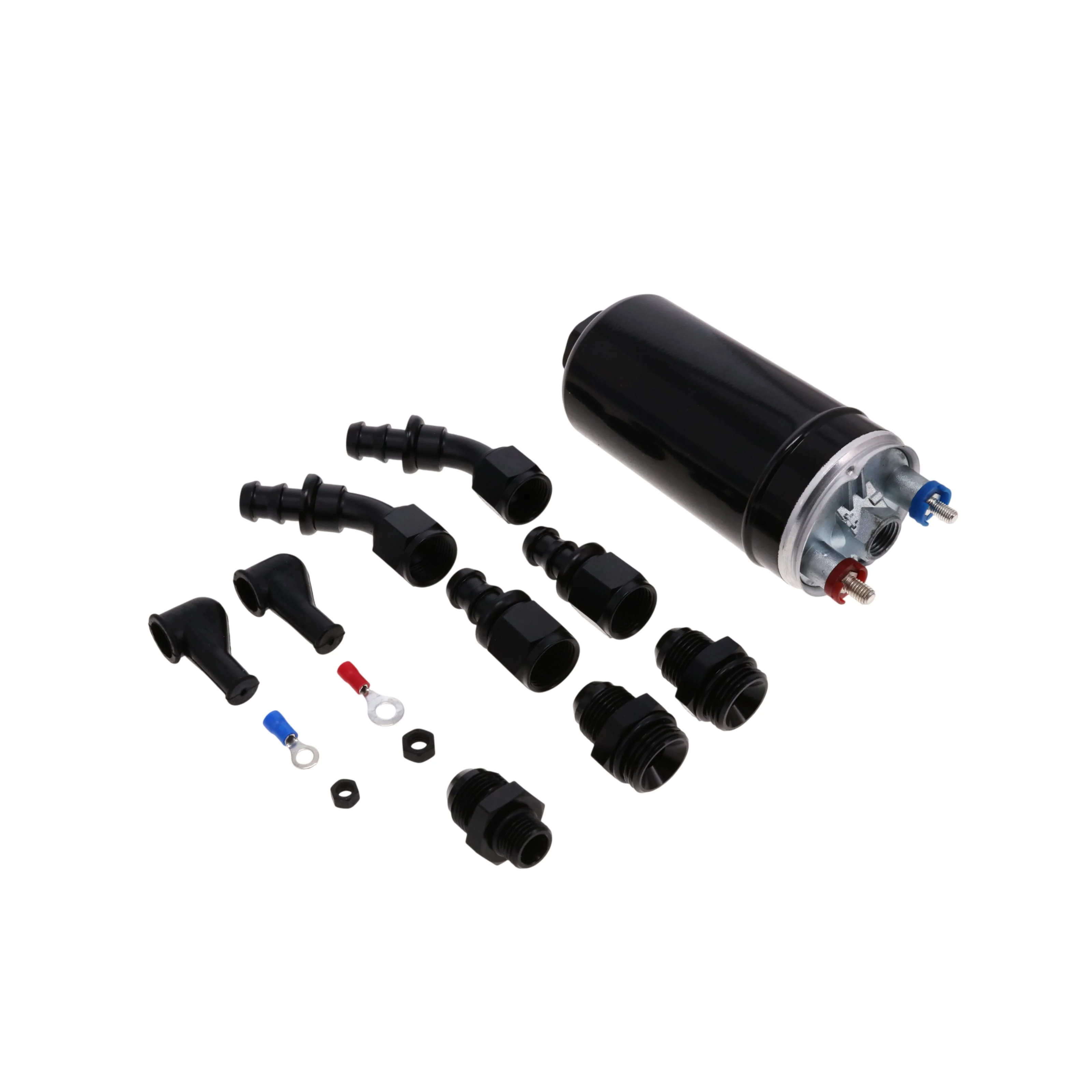

Fittings Included: Yes
Fuel Delivery Type: Electric
Fuel Pump Inlet Type: Threaded
Fuel Sending Unit Included: No
Fuel Type: Gasoline
Gasket Or Seal Included: No
Inlet Fitting Thread Size: -10 AN
Inlet Thread Diameter: -10 AN
Inlet Type: Threaded
Internal Or External: External
Maximum Flow Rating: 85 GPH
Maximum Pressure: 90 PSI
Mounting Bracket Included: No
Mounting Hardware Included: No
Outlet Fitting Thread Size: -6 AN
Outlet Quantity: 1
Outlet Thread Diameter: -6 AN
Outlet Type: Threaded
Pump Design: 044 Style
Regulator Included: No
Ring Terminals Included: Yes
Terminal Post Boots Included: Yes
Universal Or Specific Fit: Universal
Voltage: 12 V
Wiring Harness Included: No
