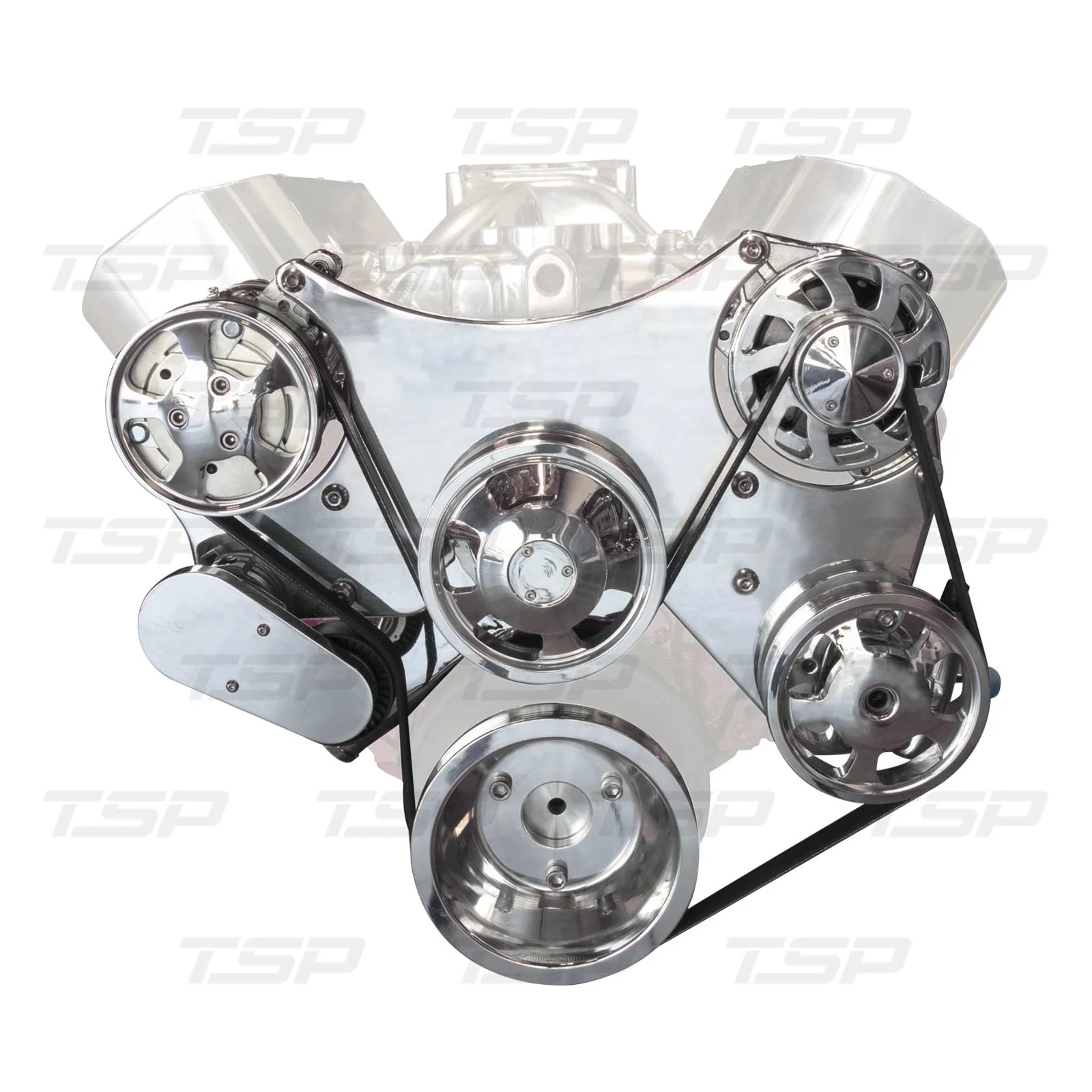

Chevy Big Block Serpentine Front Drive System
Designed for efficiency and style, TSP's Chevy big block serpentine front drive system is sure to turn heads. If you're looking for a way to dress up engine swap, look no further. And the best part: this kit comes with everything you need, from brackets and pulleys to the belt and accessories.
Compatible with:
CHEVROLET BIG BLOCK V8 GEN. II (MARK IV)
• 6.5 L / 396 in3
• 6.6 L / 402 in3
• 7.4 L / 454 in3
Compatible with Note: Due to the relocation of certain accessories, may not fit in stock applications (See dimensions)
Specifications:Bracket & Pulley Material: Billet Aluminum
Alternator Type: Cs130 Style
Alternator Output: 160 Amps
A/C Compressor Type: Sanden Sd7 Style
Water Pump Type: Reverse-Rotation Short Neck Style
Water Pump Output: High-Flow
Power Steering Pump Type: Gm Type 2 (Saginaw Tc Series)
Belt Tensioner: Included
Belt Tensioner Style: Custom Design
Spacers & Hardware: Included
Serpentine Belt: 6-Rib, 65 1/2" Length
Gates Part #: K060680
Belt Included: No
Included: Brackets & Pulleyswater Pumpa/C Compressoralternatorpower Steering Pumpbelt & Tensionerinstallation Hardware
Original: $2,064.19
-65%$2,064.19
$722.47Product Information
