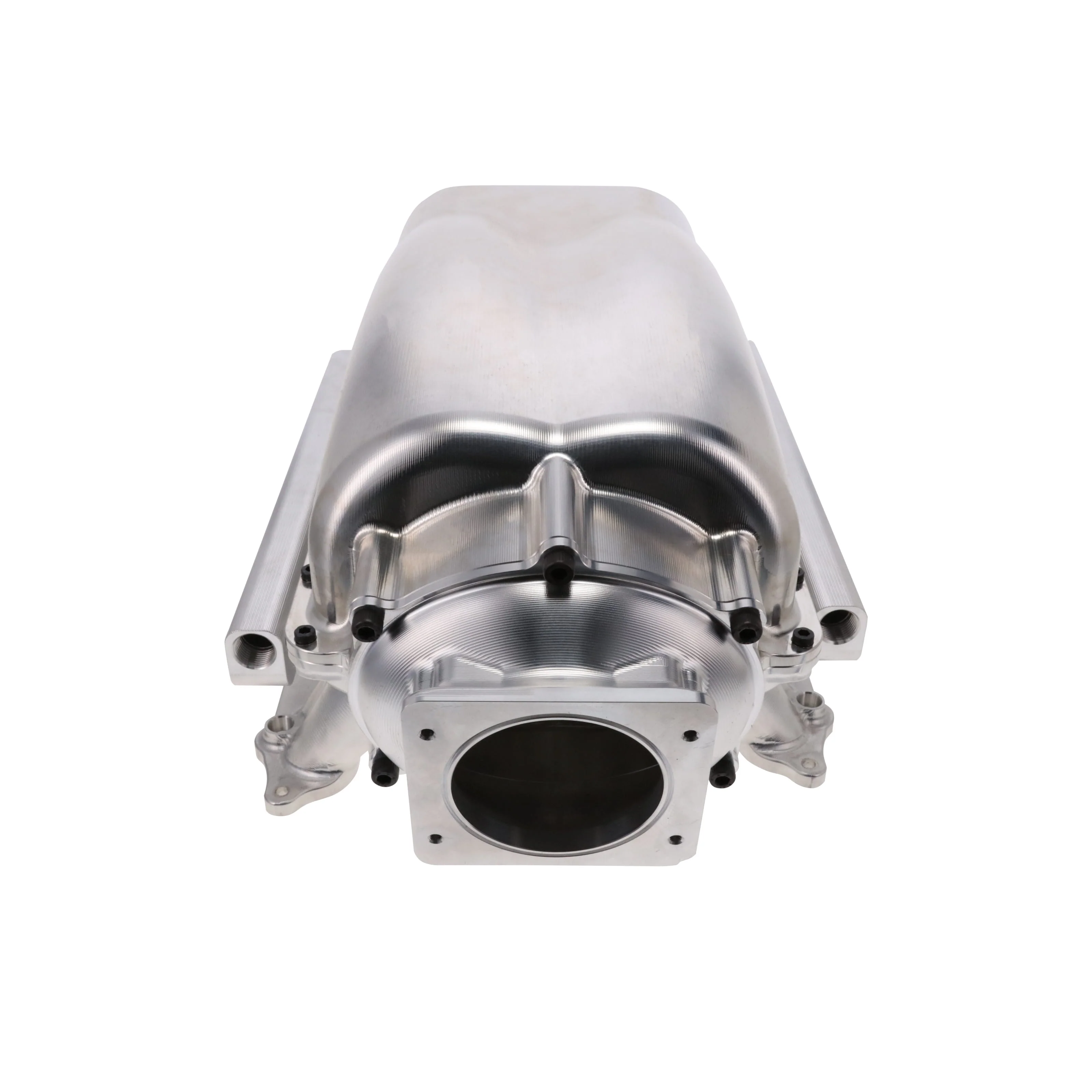

For applications that need reliable intake airflow and clean engine-bay fitment, this intake manifold combines durable construction with application-focused runner and plenum design.

Airflow & Performance Design
The intake runner and plenum design help support balanced airflow delivery between cylinders while maintaining stable throttle response and dependable street-driven performance.

Construction & Engine-Bay Fitment
The manifold construction to support long-term durability, heat management, and a clean installed appearance in demanding engine-bay environments.

Installation Considerations
Proper installation requires confirming cylinder head compatibility, intake gasket alignment, carburetor or throttle-body configuration, distributor clearance, and hood clearance before final assembly.

System Matching
Verify fuel system compatibility, throttle linkage setup, vacuum routing, sensor provisions, and accessory clearance before installation. This intake manifold is intended for properly matched engine combinations.

COMPATIBLE WITH:
FORD MODULAR V8
• 5.0 L / 302 in3

COMMON VEHICLE APPLICATIONS:
Ford Mustang
Ford F-100
Ford Bronco
Mercury Cougar
Ford Fairlane

SPECIFICATIONS:
Basic Operating RPM Range: 200-9,000 RPM
Center Maximum Height: 10.200 in.
Color: Silver
Deck Height: Standard
Front Maximum Height: 8.850 in.
Fuel Injection Style: Multi-port Fuel Injection
Fuel Injector Stye Provision: EV1
Fuel Rail Color: Silver
Fuel Rail Finish: Natural
Fuel Rail Material: Aluminum
Fuel Rails Included: Yes
Fuel System Type: Electronic Fuel Injection
Gasket Or Seal Included: Yes
Grade Type: Performance
Intake Port Shape: Oval with Dimple
Manifold Finish: Natural
Material: Aluminum
Mounting Hardware Included: Yes
Mounting Hole Quantity: 10
Plenum Thickness: 8 mm
Rear Maximum Height: 9.024 in.
Removable Runners: Yes
Removable Throttle Body Flange: Yes
Removable Top: Yes
Runner Length: 4.311 in.
Single Or Dual Plane Type: Single Plane
Supplemental Boss Quantity: 4
Throttle Body Bore Size: 92 mm
