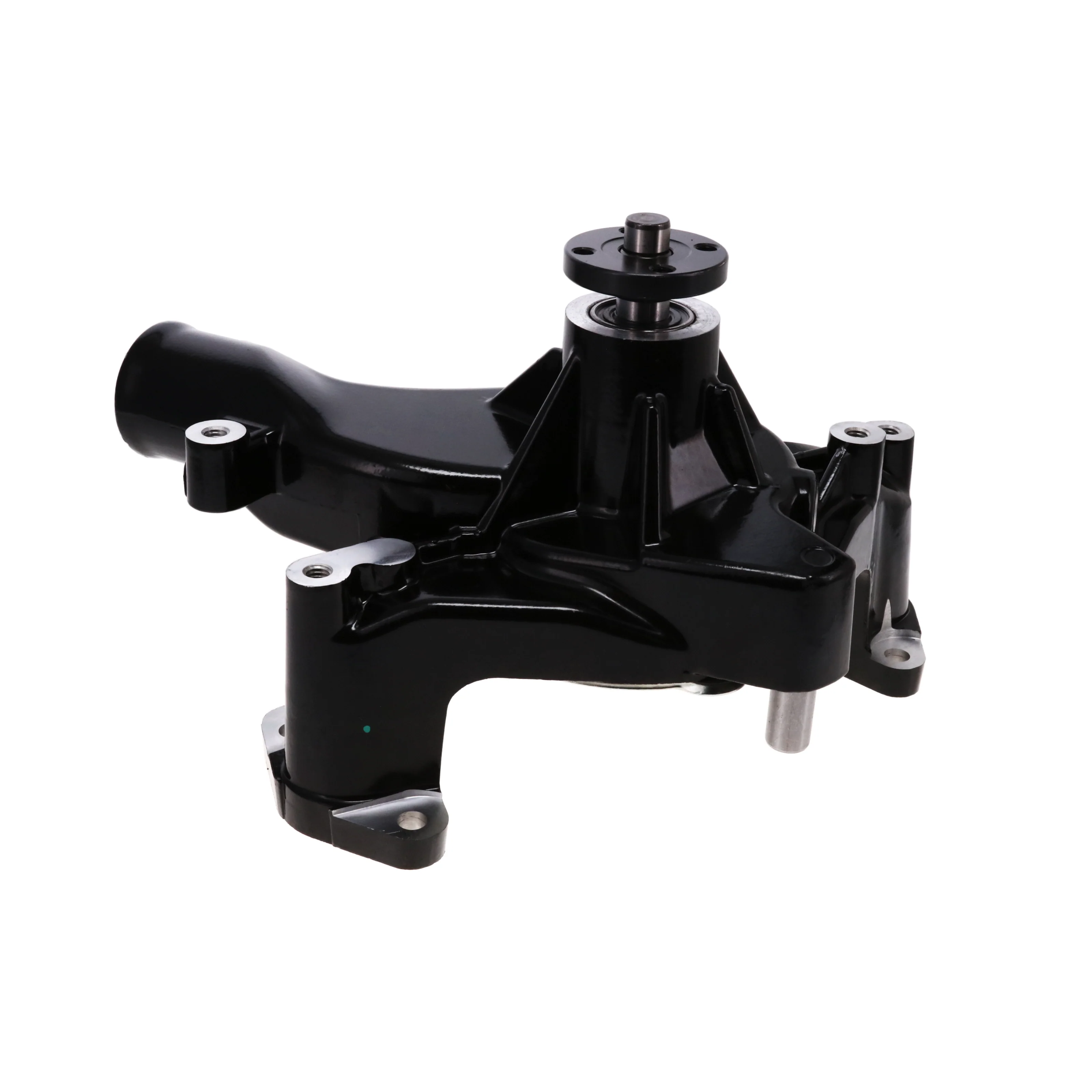

Add stronger coolant movement and a cleaner front-drive setup to Ford Big Block Fe V8 with this high-flow mechanical water pump. Key specs include high-volume, clockwise rotation, 7.560 in. hub height, 0.625 in. pilot diameter, powder-coated aluminum, giving the installation the measurements and materials buyers look for in a quality replacement.

Pulley Alignment
7.560 in. hub height and 0.625 in. pilot diameter help position the pulley and fan drive during installation.

Impeller & Flow Design
The 8-vane clockwise high-volume impeller setup helps move coolant steadily through the block, heads, and radiator circuit.

Installation Notes
Confirm gasket included: yes, mounting hardware included: no, back housing included: yes before final assembly.

COMPATIBLE WITH
FORD BIG BLOCK FE V8
• 5.8 L / 352 in3
• 5.9 L / 360 in3 1961 and later only
• 6.4 L / 390 in3
• 6.6 L / 406 in3
• 6.7 L / 410 in3
• 7.0 L / 427 in3
• 7.0 L / 428 in3

NOTES
Fits most '65-'76 light duty applications.

Specifications:
Color: Black
Finish: Powder-coated
Gasket Included: Yes
Grade Type: Performance
Housing Material: Aluminum
Hub Height: 7.560 in.
Hub Hole Quantity: 8
Hub Thickness: 0.500 in.
Impeller Material: Aluminum
Impeller Rotation: Clockwise
Impeller Vane Quantity: 8
Includes Back Housing: Yes
Mounting Hardware Included: No
Mounting Hole Quantity: 11
Outlet Quantity: 1
Pilot Diameter: 0.625 in.
Pulley Included: No
Pump Flow: High-volume
Thermostat And Housing Included: No
Water Pump Drive Type: Mechanical
