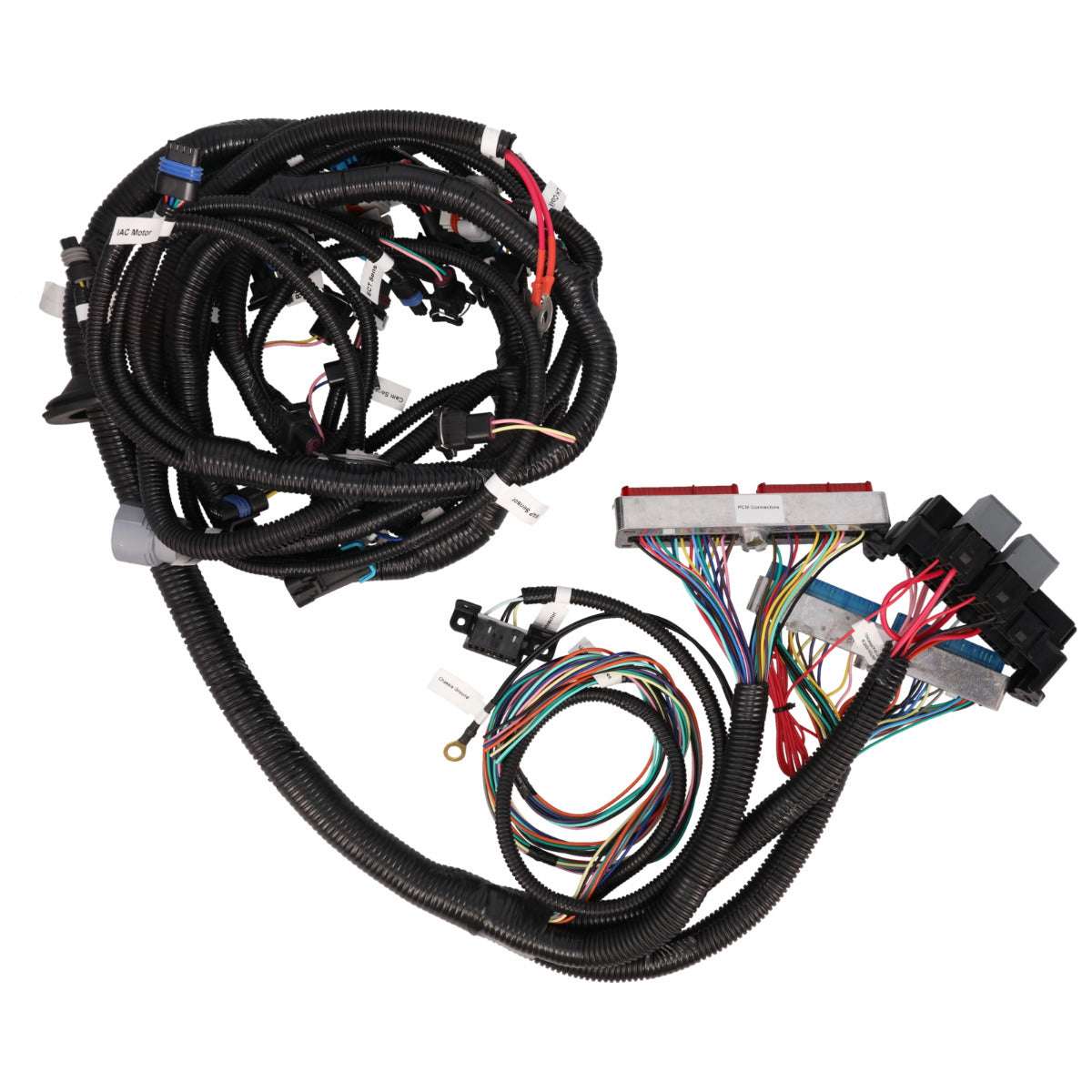

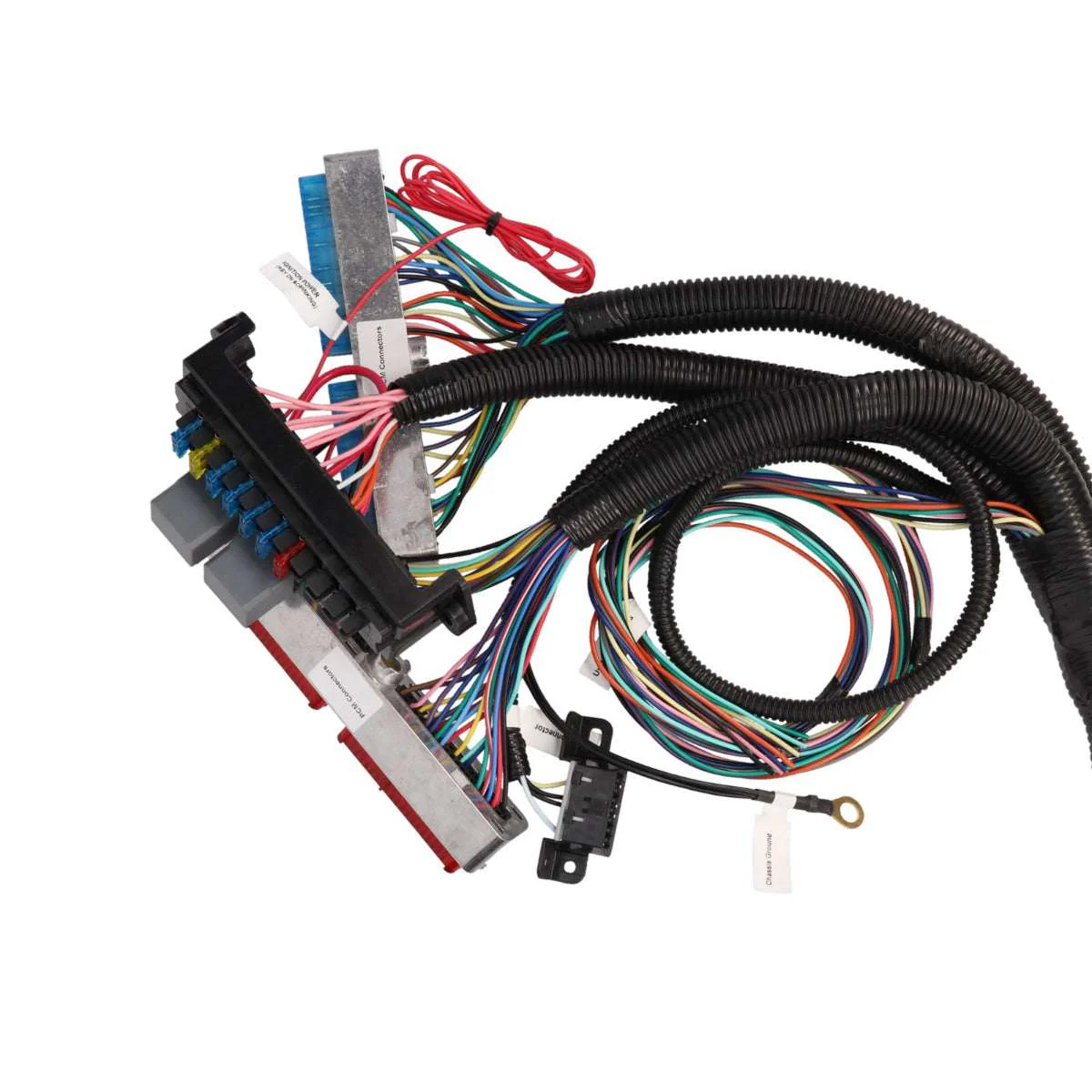

GM Standalone LS1 Drive by Cable Engine and 4L80E Transmission Wiring Harness

This GM Standalone LS1 Drive by Cable Engine and 4L80E Transmission Wiring Harness is built for standalone Drive-by-Cable engine management with 4L80E automatic transmission. The harness integrates the fuse/relay box, sensor connectors, engine control wiring, fuel pump control, fan control, OBD2 connection, and supporting outputs needed for a clean LS/LT engine control installation.

Use this harness when the engine code, throttle type, transmission connector, ECU strategy, and sensor layout match the compatibility section. The EV1 injector plug style should be matched to the engine and injector set. Confirm transmission pin count, pedal and throttle body requirements, oxygen sensor layout, MAP/MAF connections, and power/ground routing before installation.

Compatible With:
'97-'04 Corvettes, '99-'06 GM Trucks*
*Fits LS1/LS6 (5.7L) Corvettes and Vortec (4.8L, 5.3L, 6.0L)
GM trucks
*Fits drive-by cable applications with LS1 intake manifolds and 4L80E transmissions

Notes:
For Use with TSP Products
TSP adapter 81033 required in order to use GM #12592525 MAP sensor.
Will plug into TSP 81050 injectors with their included adapters.

Specifications:
Throttle: Drive-by-Cable
Injector Plug Style: EV1
Harness Length: Standard
Fuse Block Included: Yes
Quantity: Sold as a Kit
Included Connectors: Fuse/Relay Box
Fuel Pump Control
Fan Controls
Check Engine Light
IAC and TPS
MAF Sensor
MAP Sensor
Engine Coolant Temp Sensor
Alternator Control
(2) Upstream Oxygen Sensors
Crankshaft Position
Camshaft Position
Fuel Injectors
Coil Packs
Automatic Transmission Control
Knock Sensors
