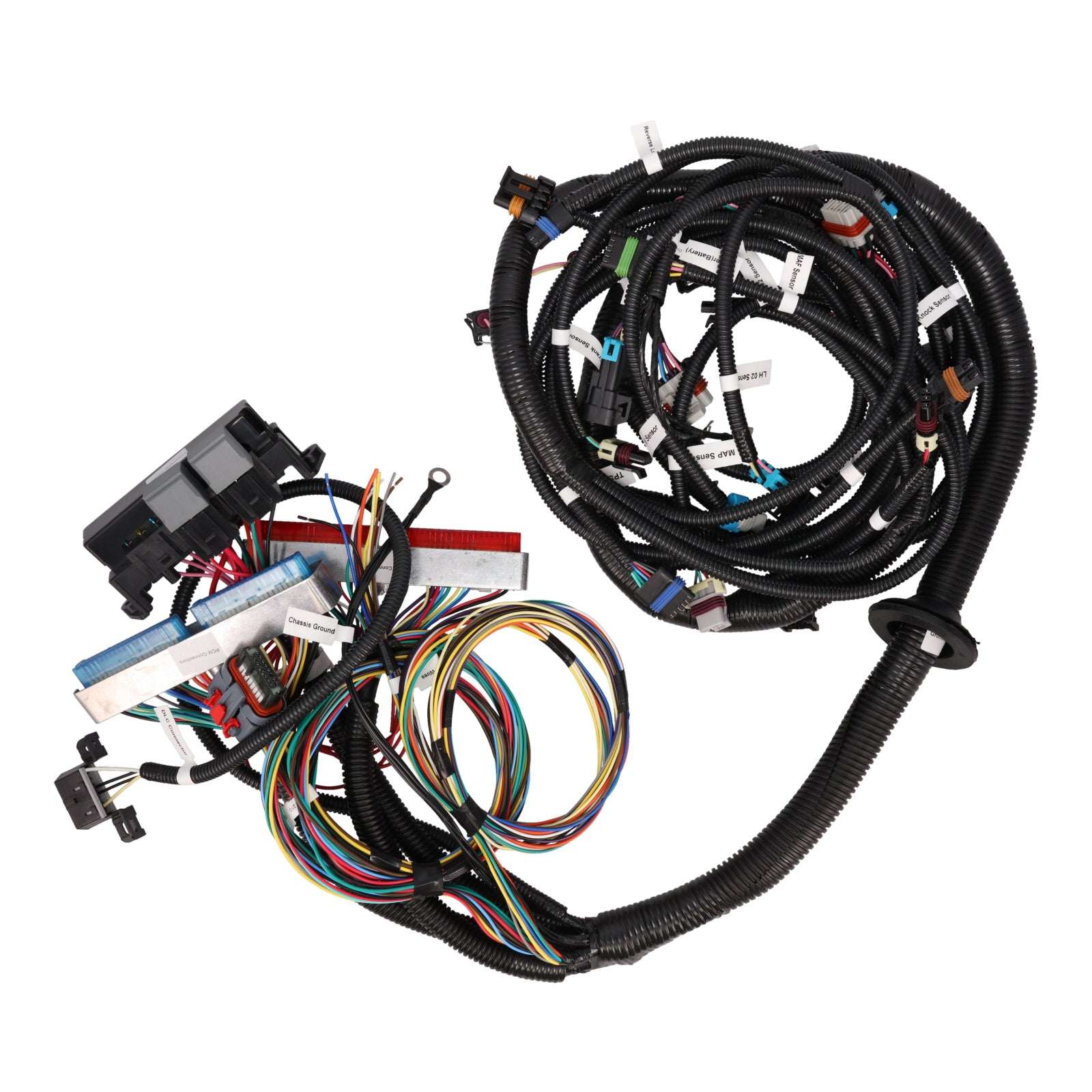

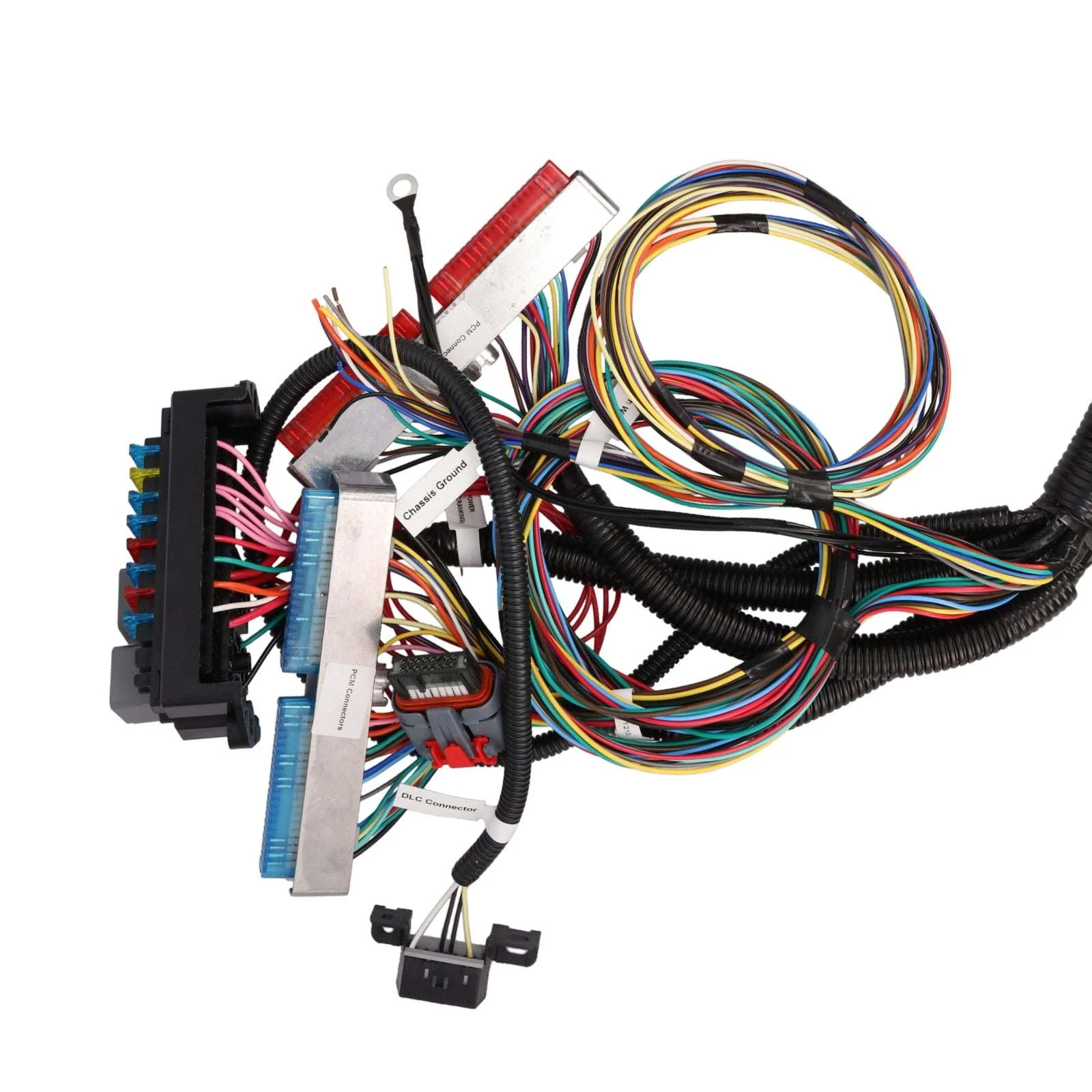

GM Standalone LS1 Drive by Wire Engine and T56 Manual Transmission Wiring Harness

This GM Standalone LS1 Drive by Wire Engine and T56 Manual Transmission Wiring Harness is built for standalone Drive-by-Wire engine management with T56 manual transmission. The harness integrates the fuse/relay box, sensor connectors, engine control wiring, fuel pump control, fan control, OBD2 connection, and supporting outputs needed for a clean LS/LT engine control installation.

Use this harness when the engine code, throttle type, transmission connector, ECU strategy, and sensor layout match the compatibility section. The EV1 injector plug style should be matched to the engine and injector set. Confirm transmission pin count, pedal and throttle body requirements, oxygen sensor layout, MAP/MAF connections, and power/ground routing before installation.

Compatible With:
('97-'04 Corvettes*):
*Fits LS1/LS6 (5.7L) Corvettes and CTS-V's
*Fits drive-by-wire applications with LS1 intake manifolds and T56 manual or non-electronic automatic (700R4, 200-4R, Powerglide, TH350, TH400) transmissions.

Notes:
For Use with TSP Products:
TSP adapter 81033 required in order to use GM #12592525 MAP sensor.
Will plug into TSP 81050 injectors with their included adapters.

Specifications:
Throttle: Drive-by-Wire
Injector Plug Style: EV1
Harness Length: Standard
Fuse Block Included: Yes
Quantity: Sold as a Kit
Included Connectors: Fuse/Relay Box
Fuel Pump Control
Fan Controls
Check Engine Light
Speedometer
Tachometer
OBD2
Accelerator Pedal and Throttle Body Control
MAF Sensor
MAP Sensor
Engine Coolant Temp Sensor
Alternator Control
(2) Upstream Oxygen Sensors
Crankshaft Position
Camshaft Position
Fuel Injectors
Coil Packs
Manual or Automatic Transmission Control
Knock Sensors
