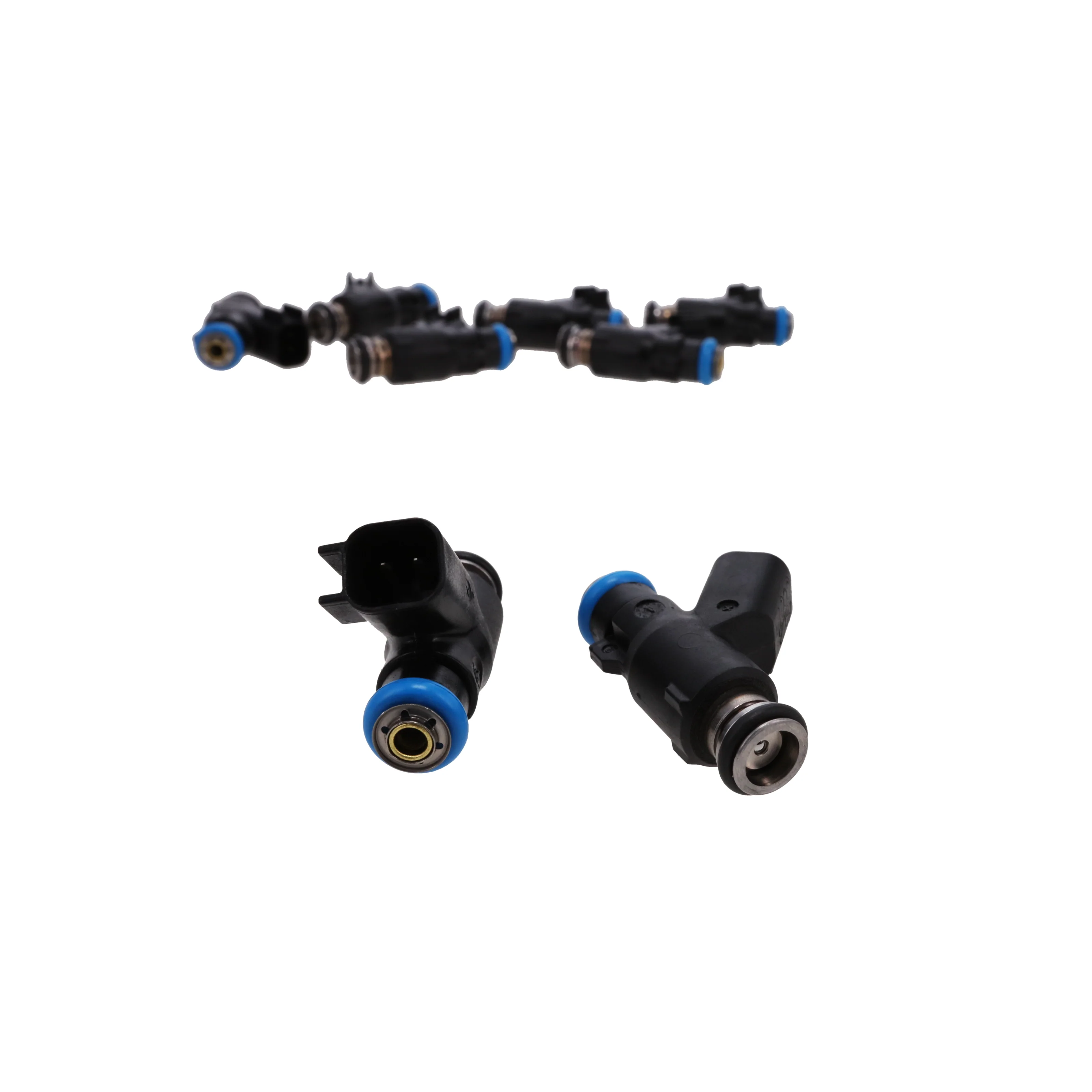

Configured for GM LS3/L92 rectangular-port applications, this fuel injector set supports precise fuel metering, consistent cylinder-to-cylinder delivery, and EFI calibration flexibility.

Injector Flow & Fuel Metering
Flow rate is listed at 100 lbs./hr.. Impedance is listed as High. Driver type is listed as 12V Saturated Circuit. These details should be matched to the ECU, fuel pressure, and engine fuel demand.

Plug / Terminal Compatibility
Injector plug style is USCAR. Terminal details include Male gender, Blade terminal type, and 2 terminals. Connector compatibility should be verified before installation or adapter selection.

Injector Body & O-Ring Fit
Seat-to-seat height is 1.480 in.. Maximum outside diameter is 0.580 in.. O-ring details include manifold O-ring 0.580 in. and rail O-ring 0.551 in.. Confirm fuel rail fit, intake fit, and injector depth before installation.

Calibration & System Matching
Common use cases include Chevrolet Camaro, Chevrolet Corvette, Chevrolet Silverado. Injector flow rate, plug style, impedance, and calibration must be matched to the EFI system before startup.

COMPATIBLE WITH:
FITS THE FOLLOWING TSP VELOCITY COMBINATIONS
• 81003 LS3 Intake Manifold with 81009 Fuel Rails
• 81007 LS7 Intake Manifold with 81011 Fuel Rails

NOTE: Will not work with stock applications

COMMON VEHICLE APPLICATIONS:
Chevrolet Silverado
GMC Sierra
Chevrolet Camaro
Chevrolet Tahoe

SPECIFICATIONS:
Driver Type: 12V Saturated Circuit
Flow Rate: 100 lbs./hr.
Fuel Injection Type: Multi-port
Fuel Rail O-ring Outer Diameter: 0.551 in.
Fuel Type: Gas
Impedance: High
Injector Plug Style: USCAR
Manifold O-ring Outer Diameter: 0.580 in.
Maximum Outside Diameter: 0.580 in.
O-Ring Quantity: 2
O-rings Included: Yes
Quantity: Set of 8
Seat to Seat Height: 1.480 in.
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Blade
