For upgraded charging systems, this CS130 style alternator uses 160 A charging output, aluminum case construction, and a Serpentine, 6-groove, 2.610 in. outside diameter pulley layout to help support added electrical accessories.

Charging Output & System Support
The 160 A amperage rating helps support electric fans, lighting, ignition components, fuel pumps, audio equipment, and additional electrical accessories. The 12 VDC rating keeps it aligned with common automotive charging-system requirements. The CS130 case family provides the charging-system layout used for compatible brackets, wiring, and mounting geometry. This makes it useful for street-driven builds, restorations, and upgraded accessory systems.

Pulley & Belt Alignment
The Serpentine, 6-groove, 2.610 in. outside diameter pulley setup is intended to match the selected accessory drive arrangement. Verify belt type, pulley offset, and bracket position before installation.

Case Construction & Cooling
The aluminum case uses a chrome finish with a 15.710 in. case circumference to balance durability, serviceability, and underhood presentation. The external fan design helps support heat management during accessory load and engine-bay operation. External fan included: Yes.

Installation & System Matching

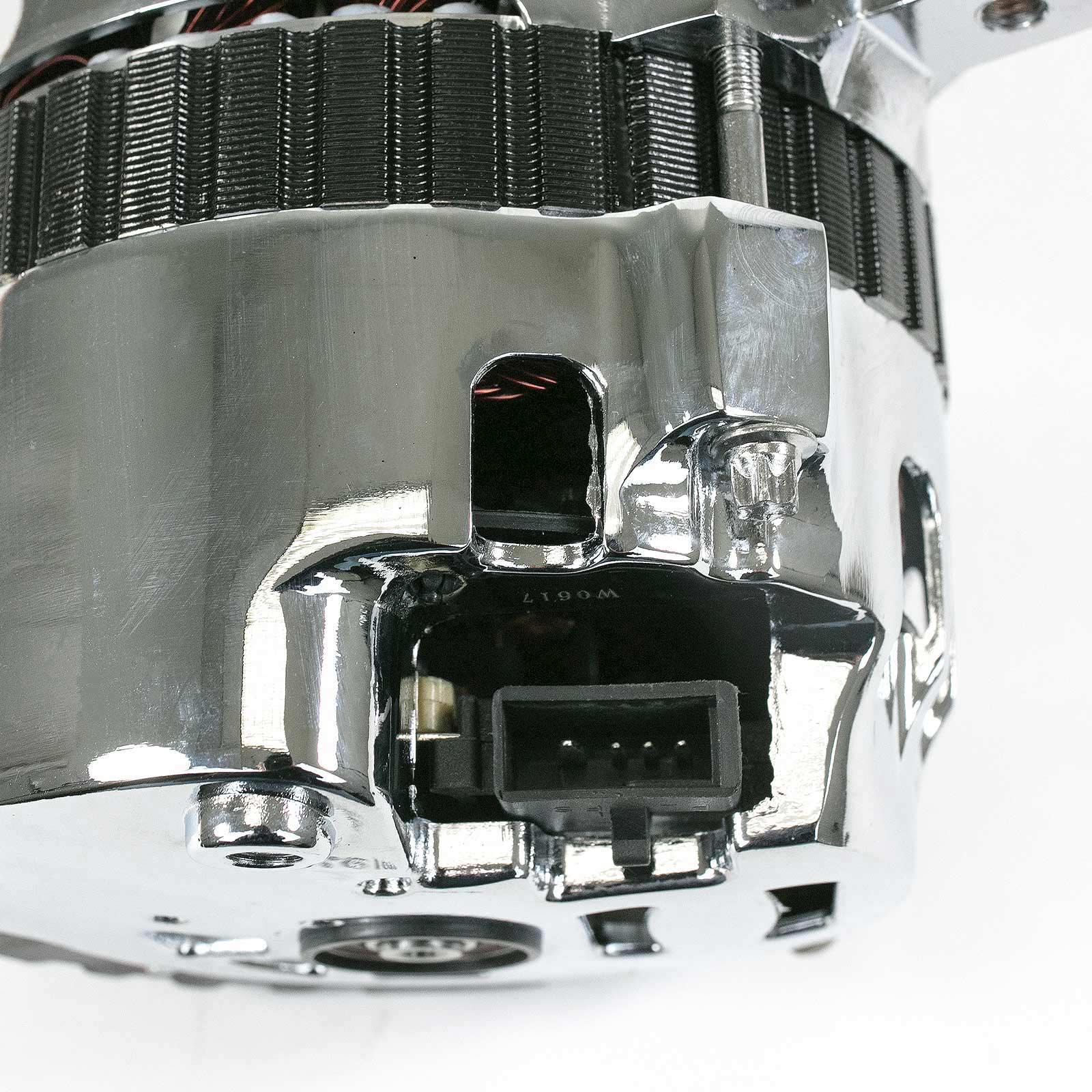

Mounting details include split mount configuration with 6.610 in. between mounting feet and mounting configuration code 15. Regulator type: Internal. External regulator included: No. One-wire capable: Yes. Plug type: 4-pin. Terminal quantity: 5. Ground type: Case ground. Rotation direction: Clockwise. Verify charge-wire size, connector style, pulley alignment, bracket spacing, and engine-bay clearance before installation.

COMPATIBLE WITH:
CHEVROLET BIG BLOCK V8 GEN. II (MARK IV)
• 7.4 L / 454 in3

CHEVROLET BIG BLOCK V8 GEN. V
• 7.4 L / 454 in3

CHEVROLET SMALL BLOCK V8 GEN. I
• 5.0 L / 305 in3
• 5.7 L / 350 in3

GM DIESEL V8
• 6.2 L / 379 in3
• 6.5 L / 395 in3

GM INLINE 4
• 2.5 L / 151 in3

GM INLINE 6
• 4.8 L / 292 in3

GM V6
• 2.8 L / 173 in3
• 3.0 L / 181 in3

OLDSMOBILE V8
• 5.0 L / 307 in3
Commonly used in GM vehicles from 1985-1993.
Alternators differ by application; verify dimensions in "Instructions & Diagrams" tab before ordering.

COMMON VEHICLE APPLICATIONS:
1986-1996 GM cars and light trucks; Chevrolet Camaro; Chevrolet Corvette; Chevrolet C/K Series; Chevrolet Caprice; GMC C/K Series; Buick, Oldsmobile, Pontiac, and Cadillac applications using compatible CS130 mounting, clocking, pulley, and wiring.

NOTES:
Verify CS130 case style, connector, mounting ear spacing, clocking, pulley alignment, and belt type before ordering.

SPECIFICATIONS:
AC Service Tap: No
Amperage Rating: 160 A
Brushless: No
Case Circumference: 15.710 in.
Case Color: Silver
Case Material: Aluminum
Distance Between Mounting Feet: 6.610 in.
External Fan Included: Yes
External Regulator Included: No
Family: CS130
Fan Type: External
Finish: Chrome
Ground Type: Case ground
Mounting Configuration Code: 15
Mounting Type: Split Mount
One Wire Capable: Yes
Outside Pulley Diameter: 2.610 in.
Plug Clock Rear View Main Mounting Ear at 6 O Clock: 12 o'clock
Plug Type: 4-pin
Pulley Belt Type: Serpentine
Pulley Groove Quantity: 6
Pulley Included: Yes
Regulator Type: Internal
Rotation Direction: Clockwise
Split Mounting Foot Overall Inner Spacing: 6.610 in.
Split Mounting Foot Overall Outside Spacing: 7.610 in.
Terminal Quantity: 5
Voltage: 12 VDC
